Preview: Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New Preview: Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New Preview: Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New Preview: Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New Preview: Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New
Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New
Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New
Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New
Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New
Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New


Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New

€499.95 *

incl. VAT and plus shipping costs

In stock, delivery time approx. 2-7 workdays¹

  • Article number: 1162240
  • Comparison no.: 53631
  • Installed: 1
Legal guarantee (GARAN)
Description Fitting Vehicles... Assembly info
Description
Close menu
Product information "Engine wiring harness for fuel injection system – Fiat 124 Spider CS0-DS 2000 i.e. – New"

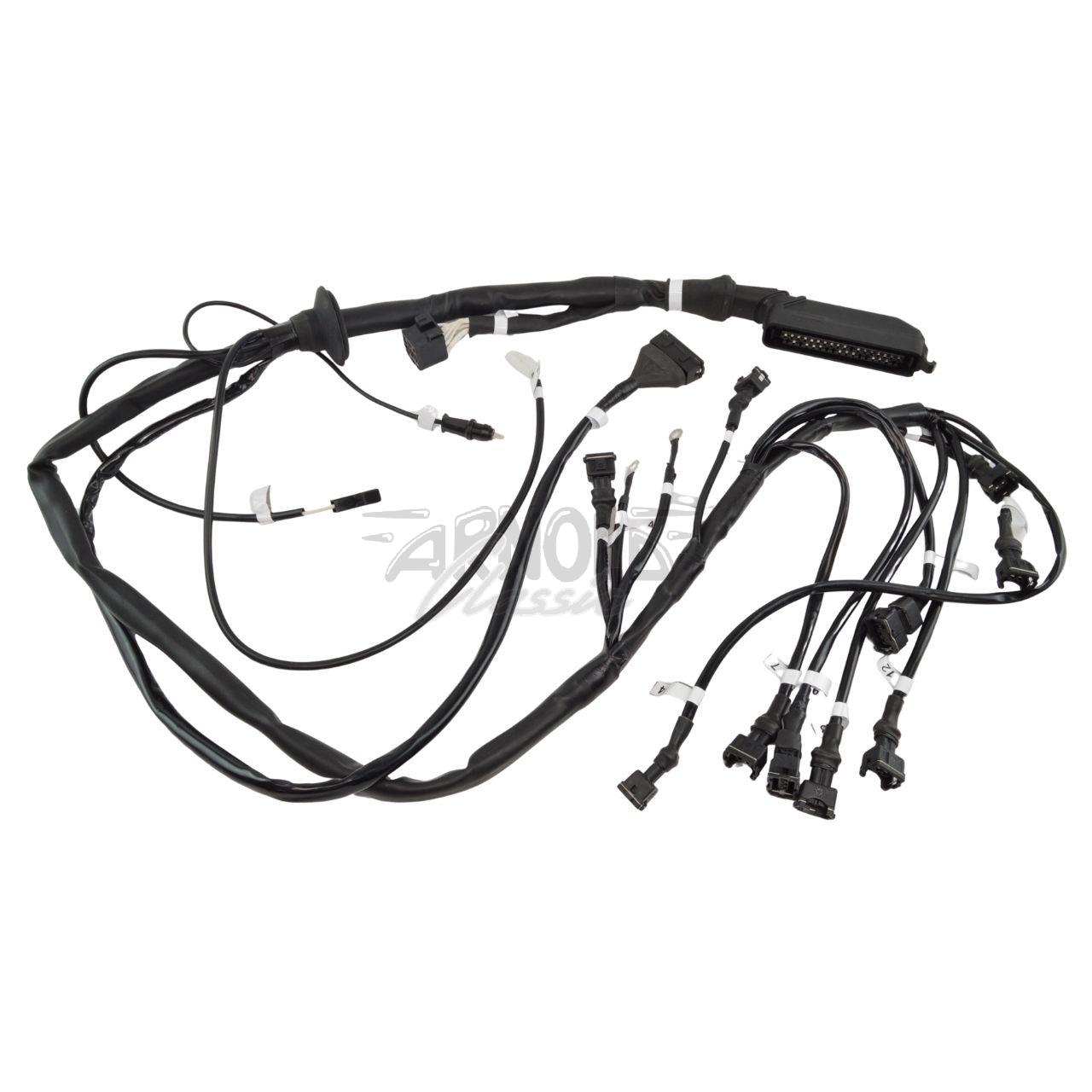

The engine wiring harness fits all 2000 i.e. models. It is suitable for both US-spec and Euro-spec Spiders.

The wires are numbered for easy installation. The installation instructions specify which number connects to which component, ensuring a quick and smooth installation process.

Goods area: Electrics, Switches, Engine
Condition: New
Related Links
Fitting Vehicles...
Manufacturer Model (check type) Type
FIAT 124 Spider
CS0 (2000)
DS (2000)
Assembly info

Occupancy Schedule

numbering Component
1 Control unit
2 Fuelpump relais
3 Ground connection on intake manifold
4 Ground connection on intake manifold
5 Fuel injector No. 4
6 Fuel injector No. 3
7 Central Temperature switch
8 Altitude encoder
9 Throttle switch
10 Fuel injector No. 2
11 Fuel injector No. 1
12 Cold-start valve
13 Auxiliary air valve
14 Temperature sensor
15 Lambda sensor
16 Minus side of ignition coil
17 Not used
18 Air flow meter
