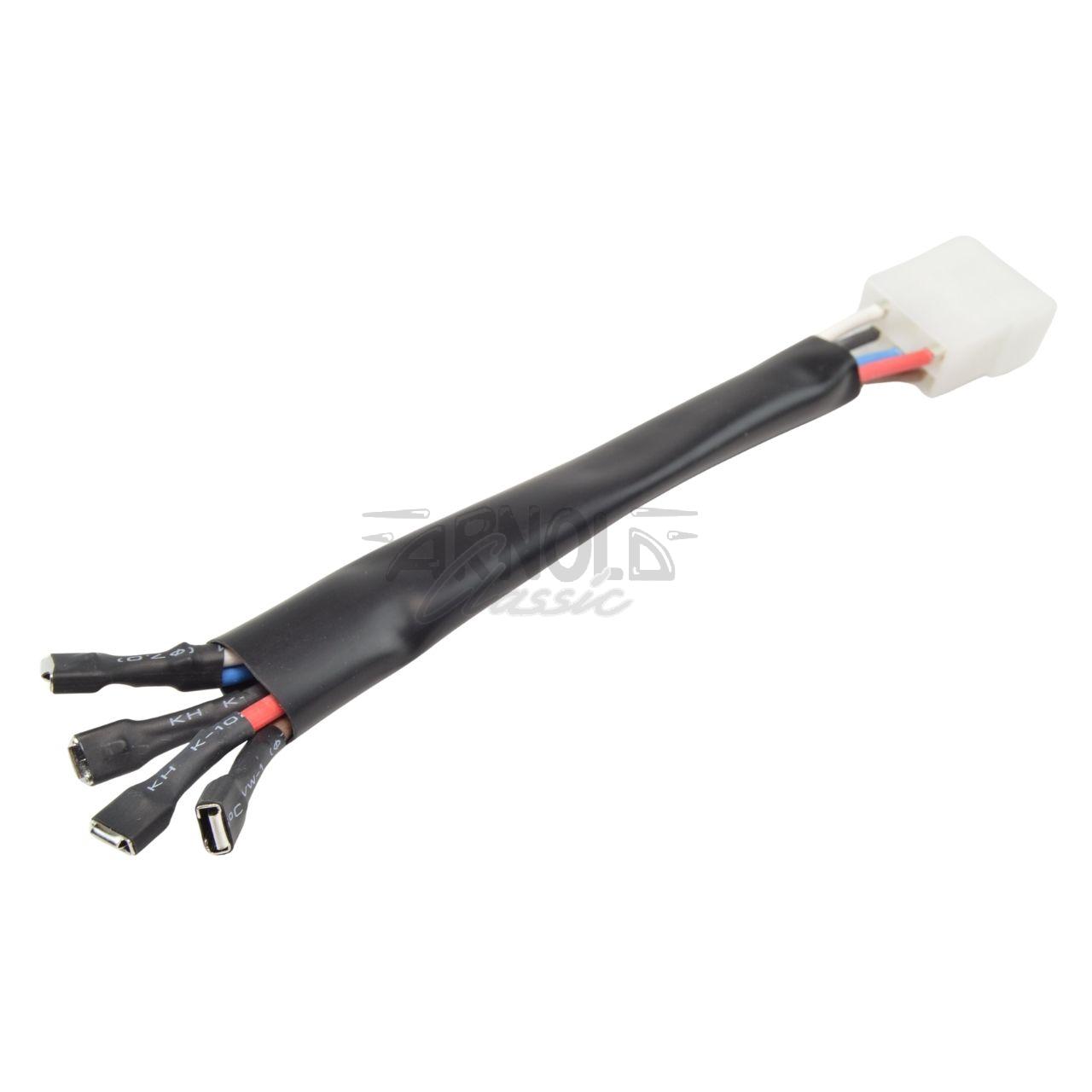

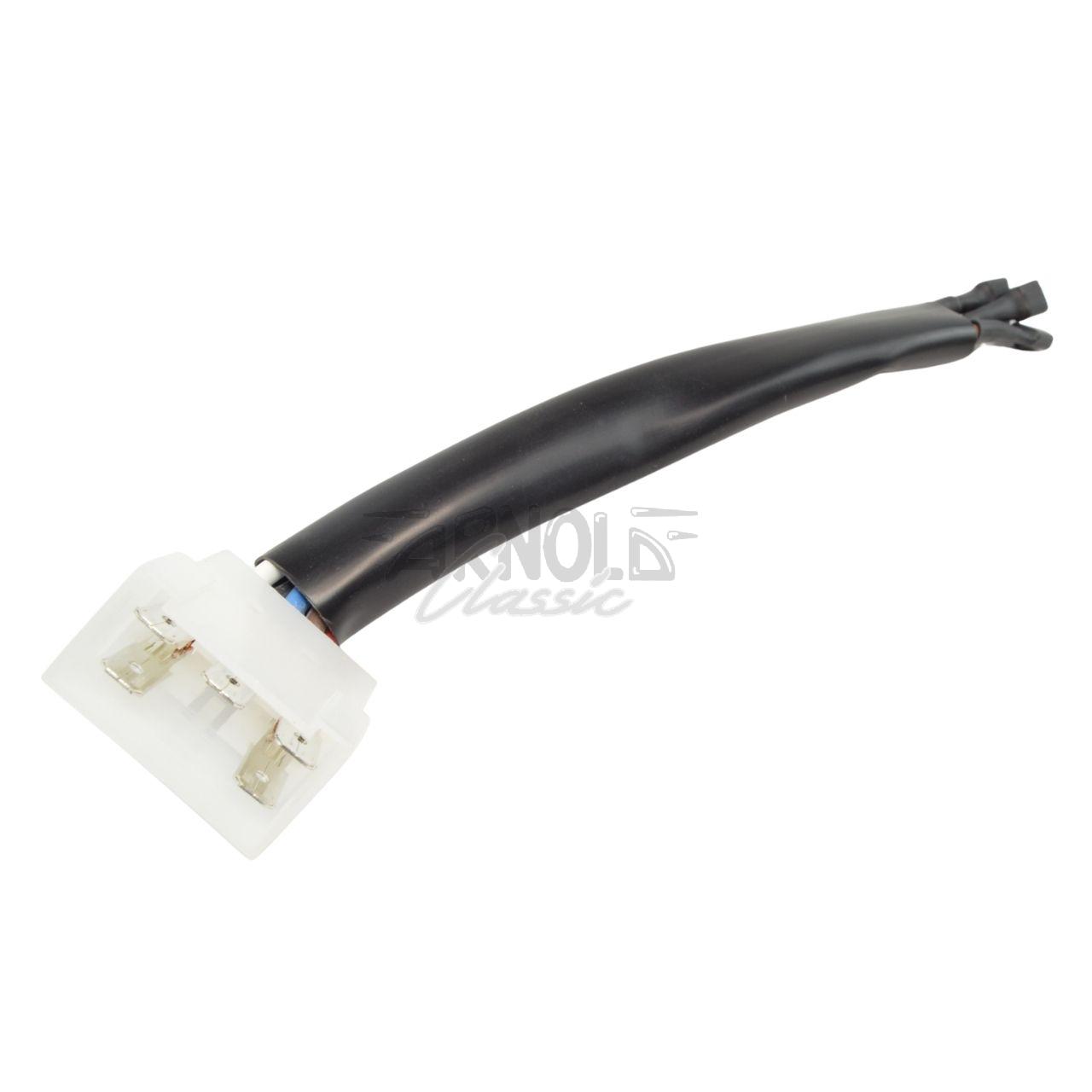

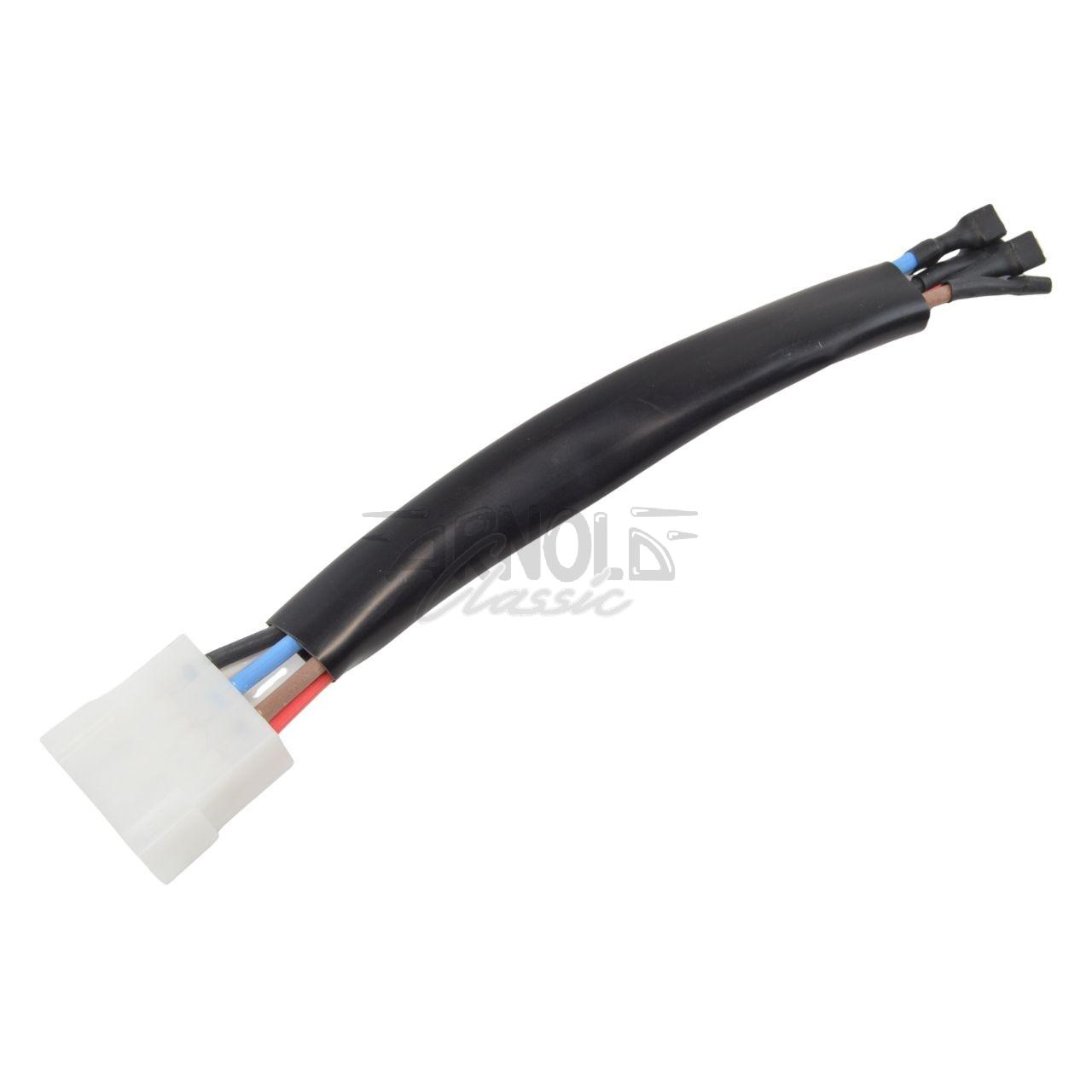

Wiring harness for ignition switch, Fiat 124 Spider (1979–1985) – New

Wire colors may vary, but this does not affect the connection or functionality of the harness. When connecting the wires, note that the bottom center slot is the empty one, which helps ensure correct wire assignment. Connect the top-left wire to terminal 30/1, the top-center wire to INT, and the top-right wire to terminal 30. Connect the bottom-right wire to terminal 50; leave the bottom-center slot empty and connect the bottom-left wire to terminal 15. All wires are now connected to the ignition switch, and it is ready for installation.
